Copper wire granulator for recycling plants
Turn waste cables into clean copper granules
KR300, KR400 and KR600 machines are built for small and medium recycling businesses that need stable separation, compact layout and easy operation.
Model Selection
Choose the right output for your workshop
Capacity changes with cable thickness, copper content and feeding length. These three models cover common small and medium recycling needs.

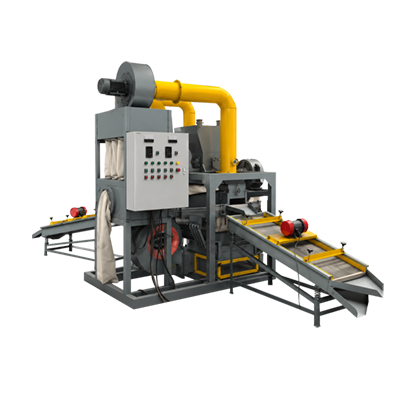

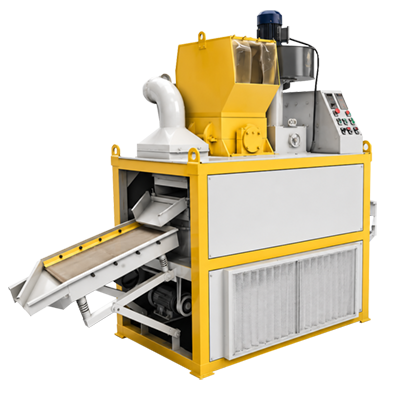

KR300
Entry model for smaller daily volume and compact installation.
Capacity: 130-150 kg/h
Total Power: 12.35 kw
Weight: 680 kg
KR400
Balanced model for growing recycling workshops.
Capacity: 200-300 kg/h
Total Power: 19.38 kw
Weight: 2200 kg

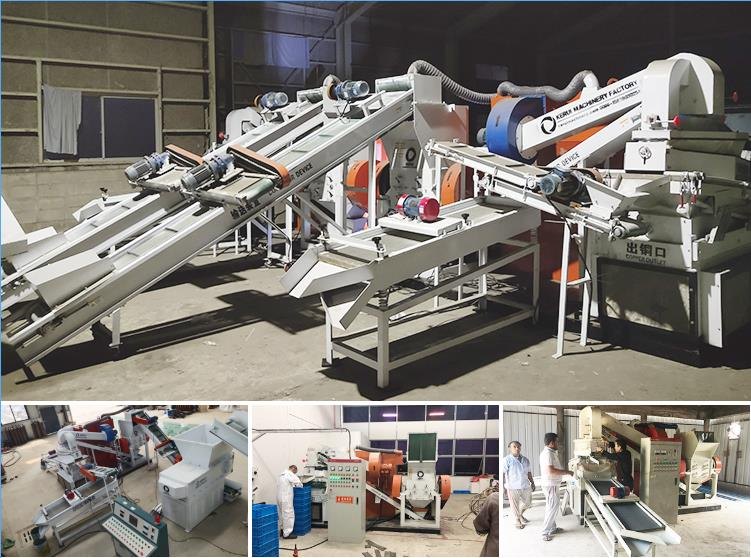

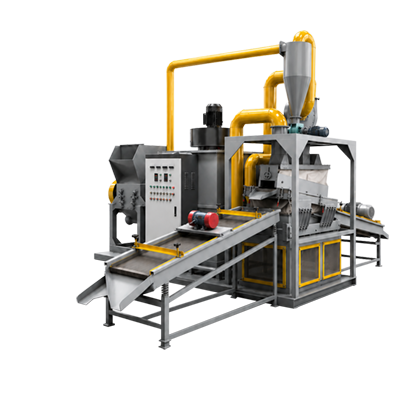

KR600
Higher output configuration with pulse dust collector.
Capacity: 350-400 kg/h
Total Power: 46.63 kw
Weight: 4000 kg

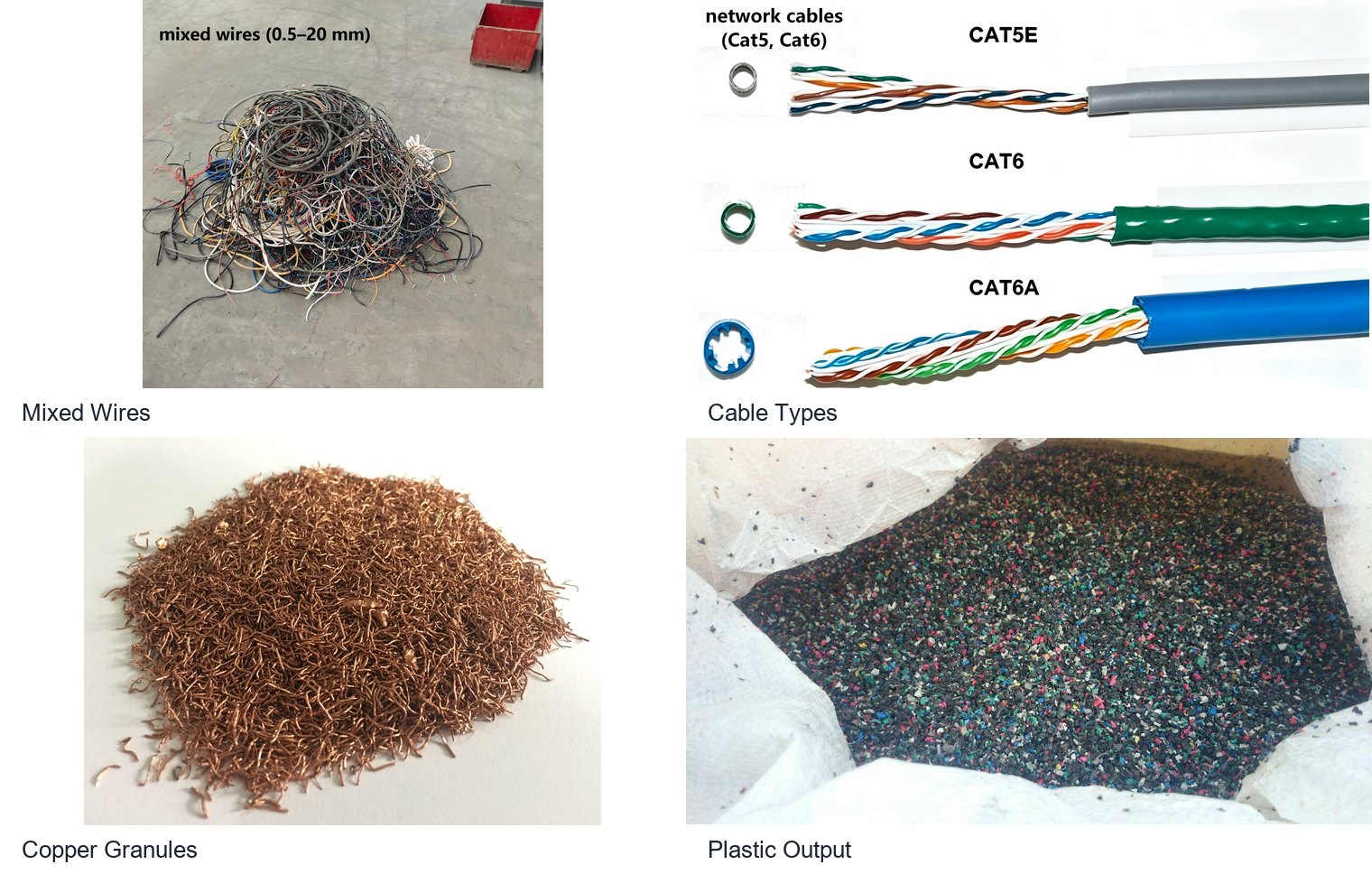

Materials & Output
Designed for mixed waste wires and clean separation

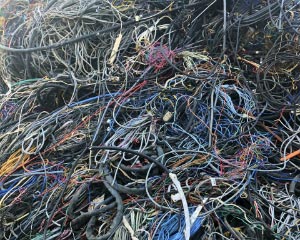

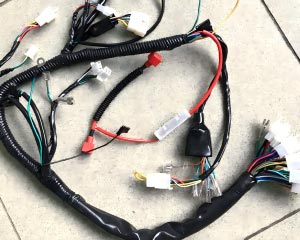

The machine processes household wires, automotive wires, network cables and mixed copper cables, then separates copper granules from plastic.

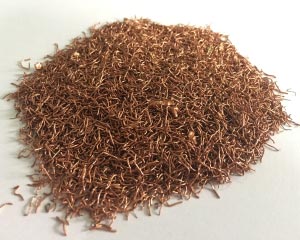

- Copper granules and plastic output are collected separately.
- Airflow and vibration sorting can be adjusted by material.
- Suitable for 0.5-20 mm wire diameter.

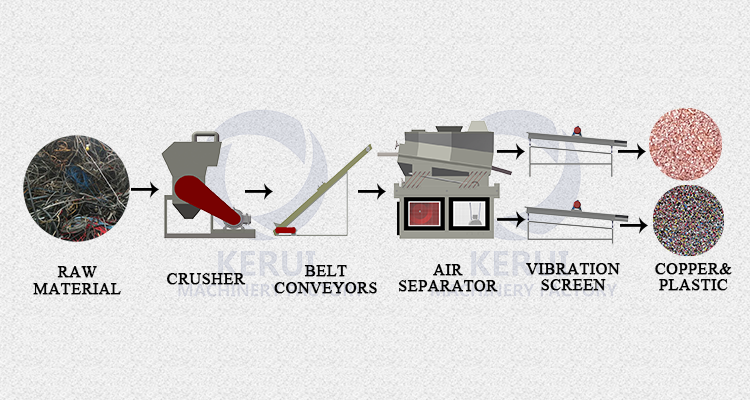

Process Flow
Simple mechanical separation workflow
Waste wires are crushed into particles, then airflow and vibration sorting separate copper from plastic. Configuration can be adjusted by raw material and target output.

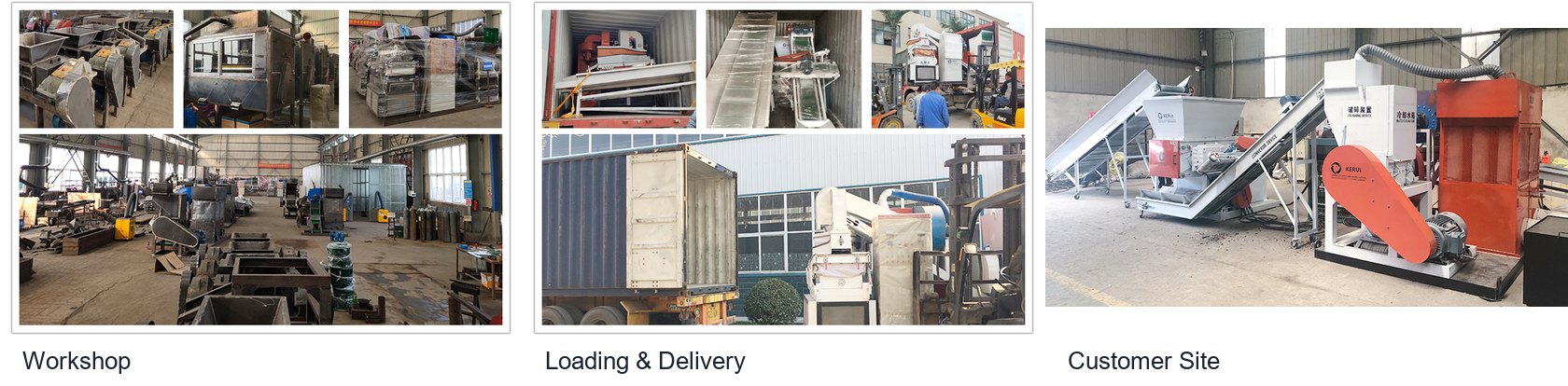

Factory Test & Delivery
From workshop testing to loading
Before shipment, the equipment can be checked with your target material and prepared according to your installation space.
- Factory machine testing and operation check.

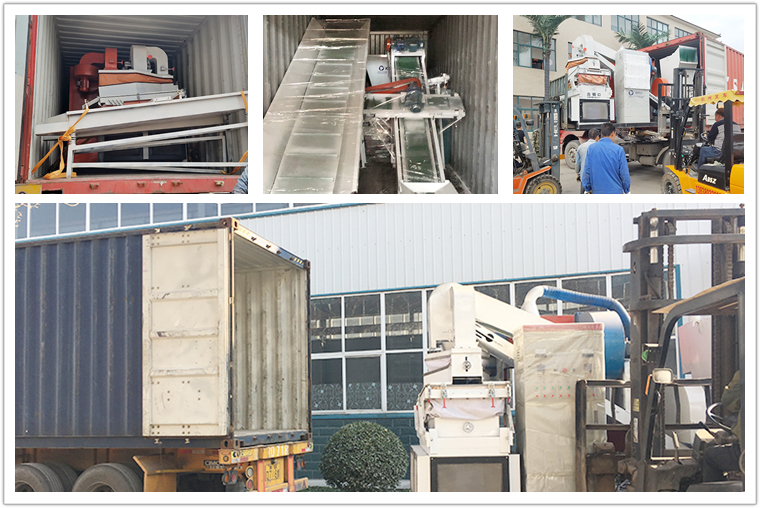

- Packing and container loading support.
- Model recommendation based on material and capacity target.
Technical Data
Detailed Parameters
| Model | KR300 | KR400 | KR600 |
|---|---|---|---|
| Main Unit Dimensions (L*W*H) | 3300*1000*2200 mm | 1900*1630*2630 mm | 4300*1900*3700 mm |
| Vibrating Sorting Bed | 2000*645*860 mm | 2000*645*860 mm | 2030*645*1110 mm |
| Capacity | 130-150 kg/h | 200-300 kg/h | 350-400 kg/h |
| Total Power | 12.35 kw | 19.38 kw | 46.63 kw |
| Weight | 680 kg | 2200 kg | 4000 kg |
Actual capacity depends on cable type, copper content, cable length and operating conditions.
FAQ
Questions buyers usually ask
What affects the capacity?
Cable thickness, copper content and cable length all affect output.
What is the sorting rate?
The sorting rate can reach 95-97% under suitable material and operating conditions.
What wire diameter can it process?
The recommended wire diameter range is 0.5-20 mm.
Can the machine be customized?
Yes. Configuration can be adjusted according to your raw material, capacity target, factory space and power supply.
Get a configuration plan
Send your wire sample and capacity target
Tell us your cable type, copper content, expected output, factory space and local power supply. We will recommend a suitable model and configuration.
